Estimated Build Time – 2-3 weeks

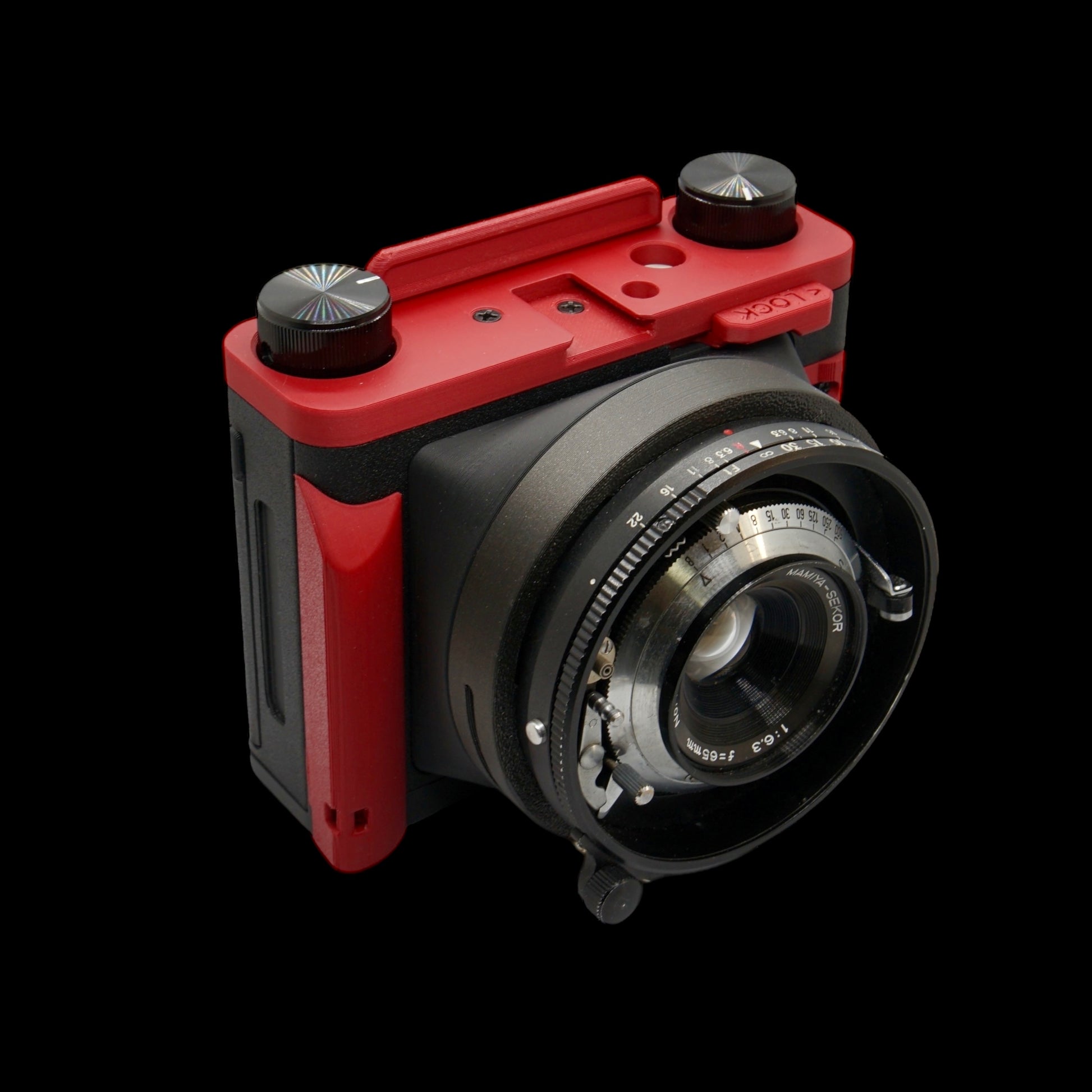

The Six:6/45 is a unique 6x6 (medium format) camera system, with the flexibility of direct ground glass focusing capability and zone focus handheld photography in one compact, lightweight, system. Using slot-in interchangeable lens cones allows for a range of focal lengths to be used by the photographer. The camera shares lens cones with the CubePan 35mm panoramic camera, allowing for lenses to be directly shared between systems without removing/re-fitting the lens from the board.

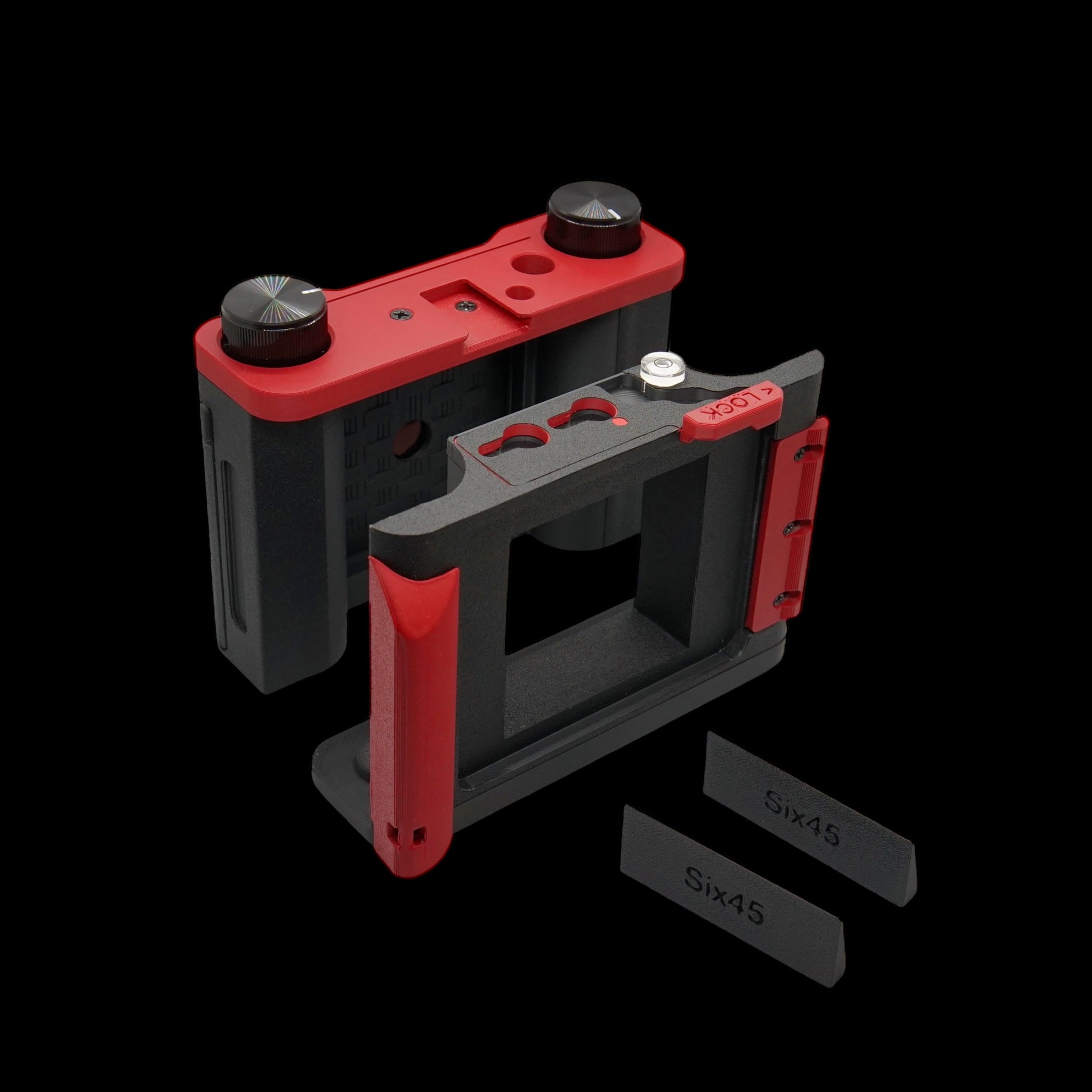

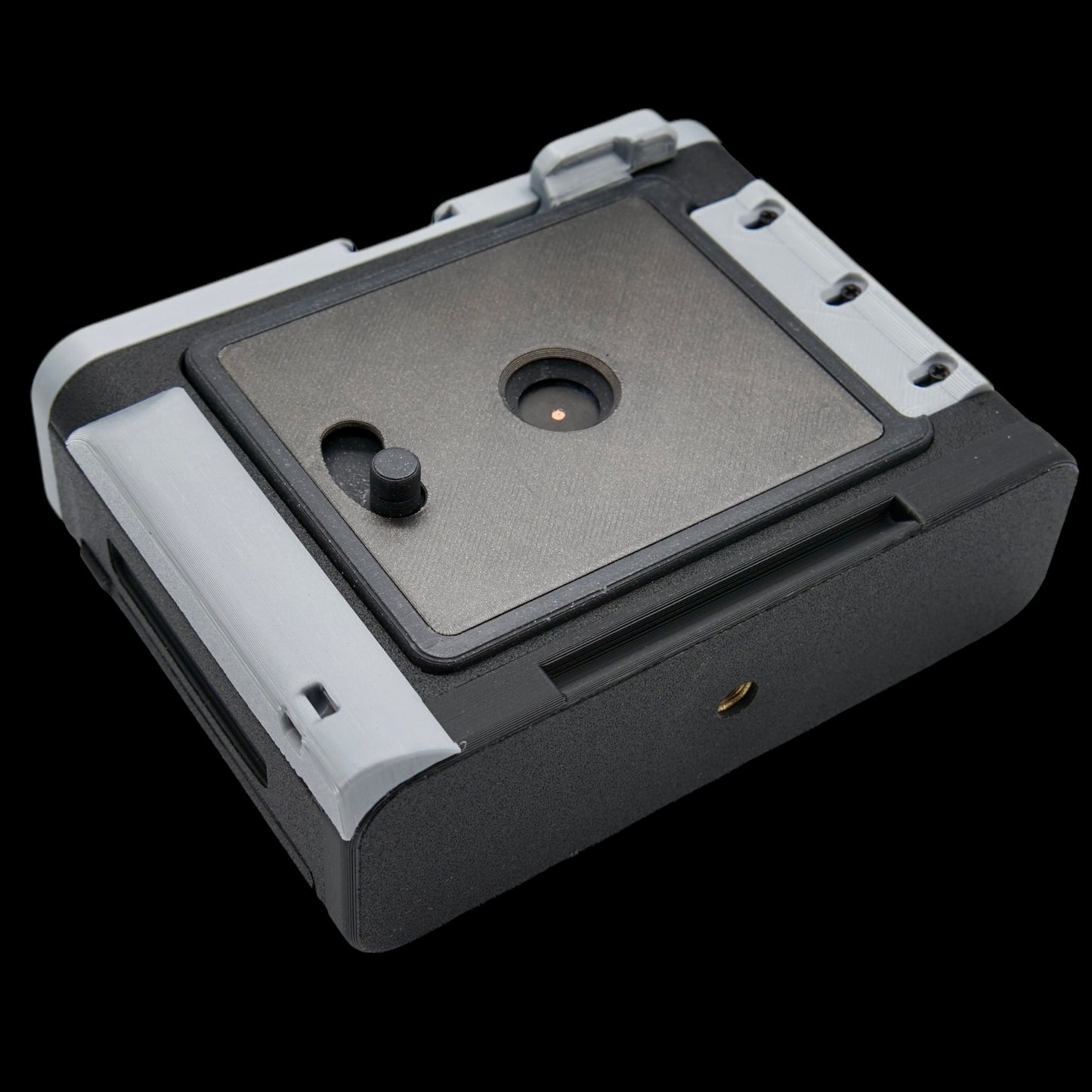

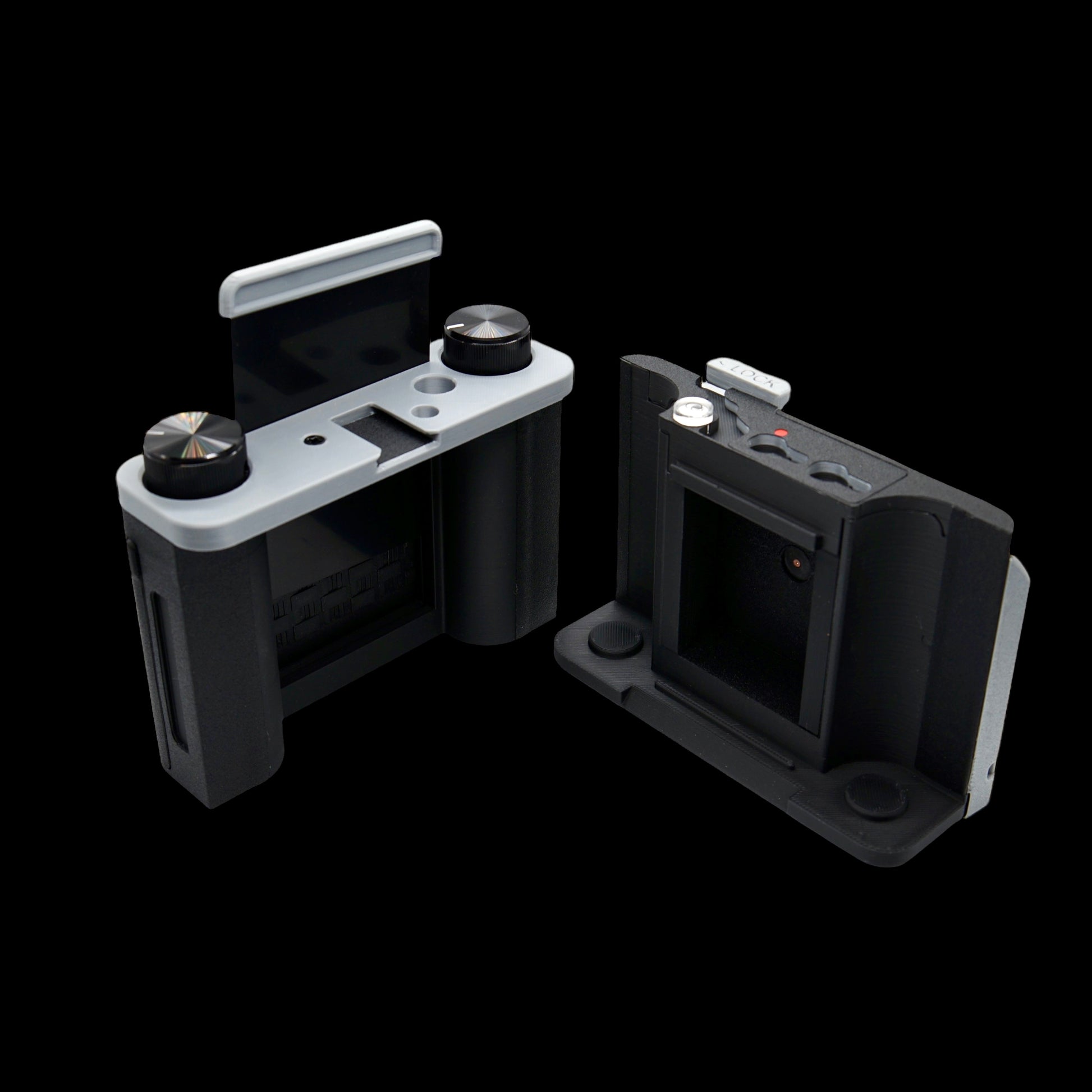

The Six:6 has a fully removable film back, with integrated darkslide, making it the only handheld 6x6 camera that you can directly focus/compose each frame on the roll, giving complete control over each frame.

The main camera body has an embedded bubble level in the top centre, to aid composition when focusing on the ground glass, the level is also visible when the film back is fitted to provide the same composition aid when using the camera with zone focusing.

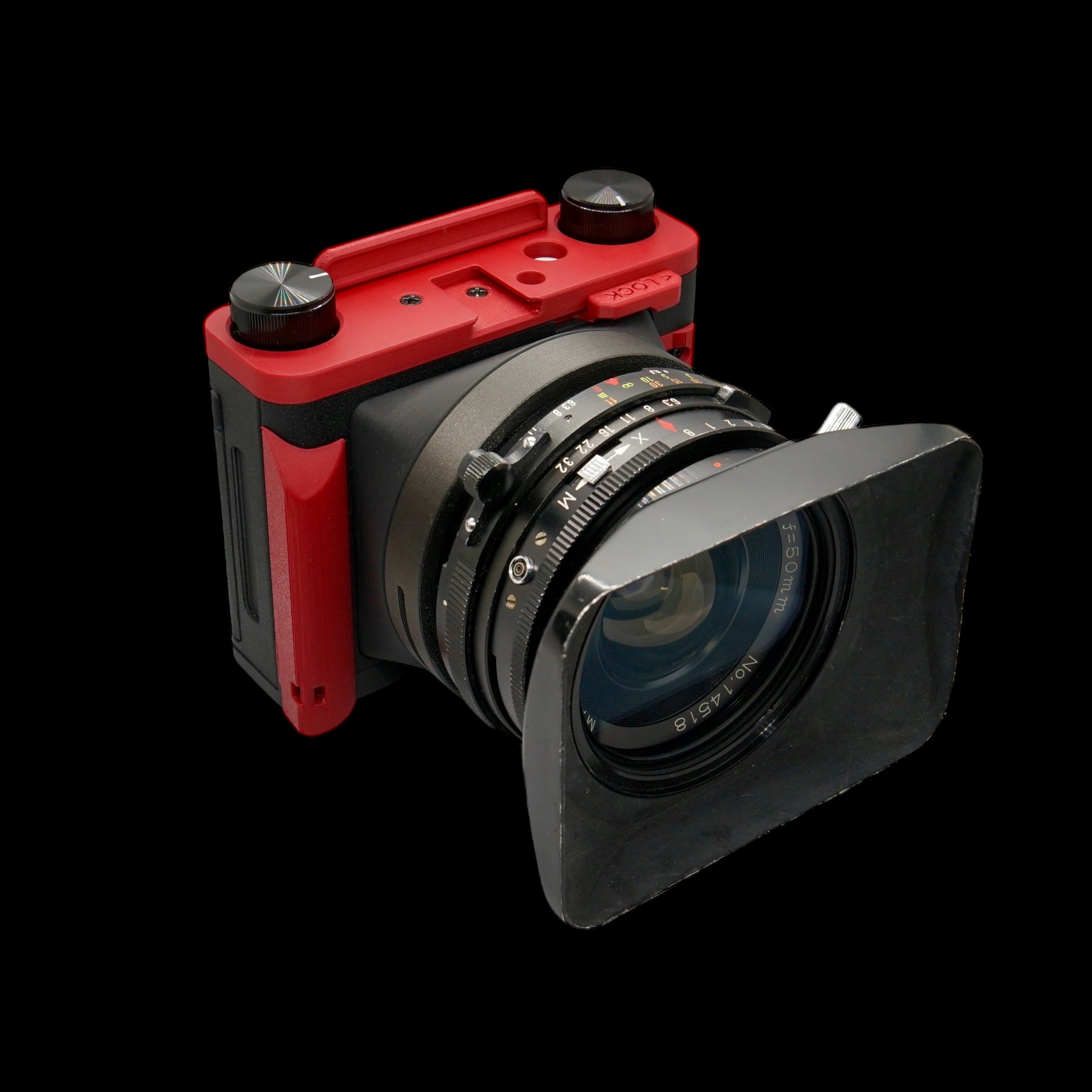

All Six:6 cameras come with one lens cone/helicoid as standard. If there is a specific lens you wish to use, and it's not listed, get in touch and a custom cone can be designed, so long as the rear element is smaller than 60mm diameter, and the shutter size is smaller than 54mm.

All lens cones are secured using a tab beneath the grip as well as a physical lock tab, ensuring a strong stable mount.

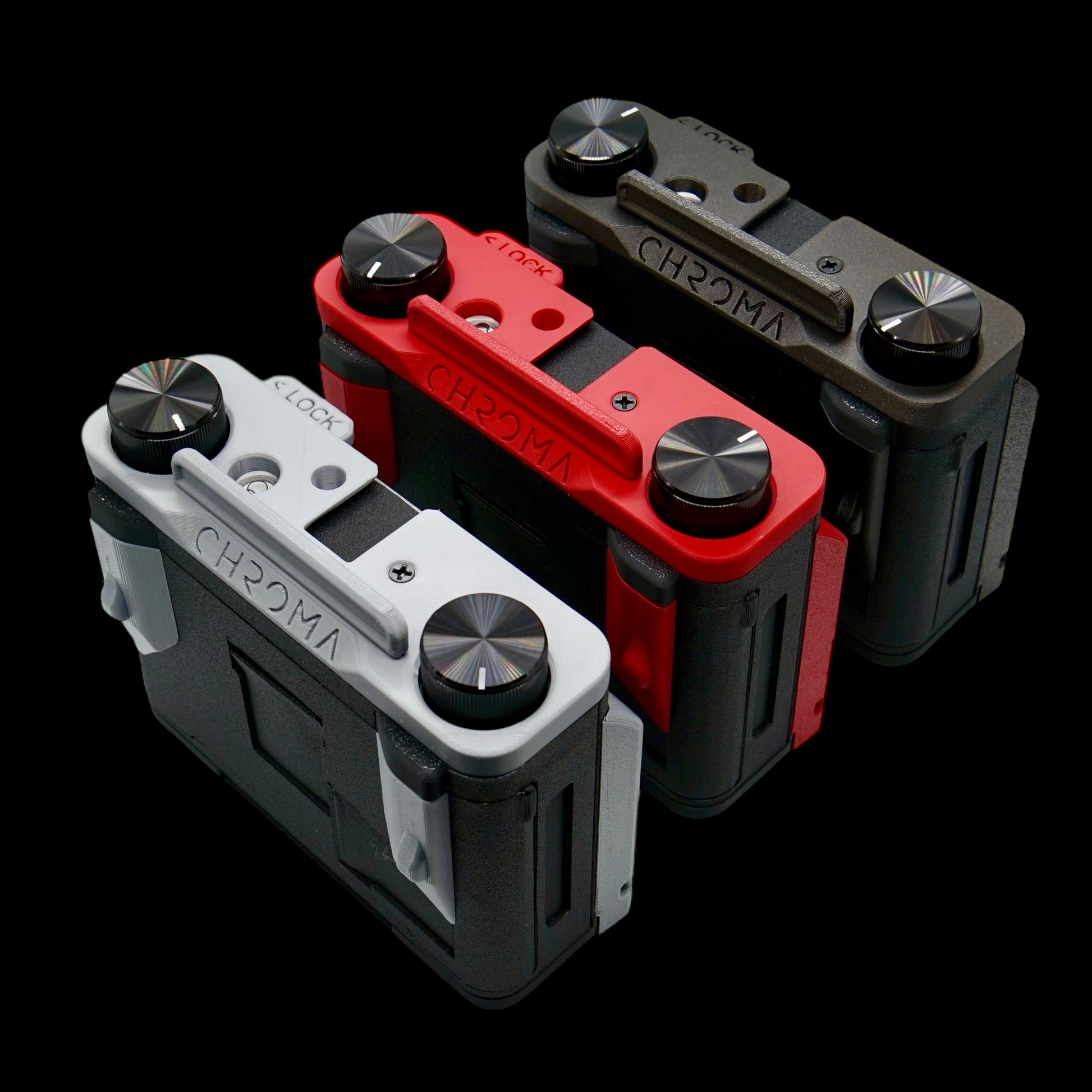

Film loading/unloading is simple, thanks to the fully removable rear door and sprung take up/rewind knobs. Both the take up and rewind knobs on the top plate are machined aluminium.

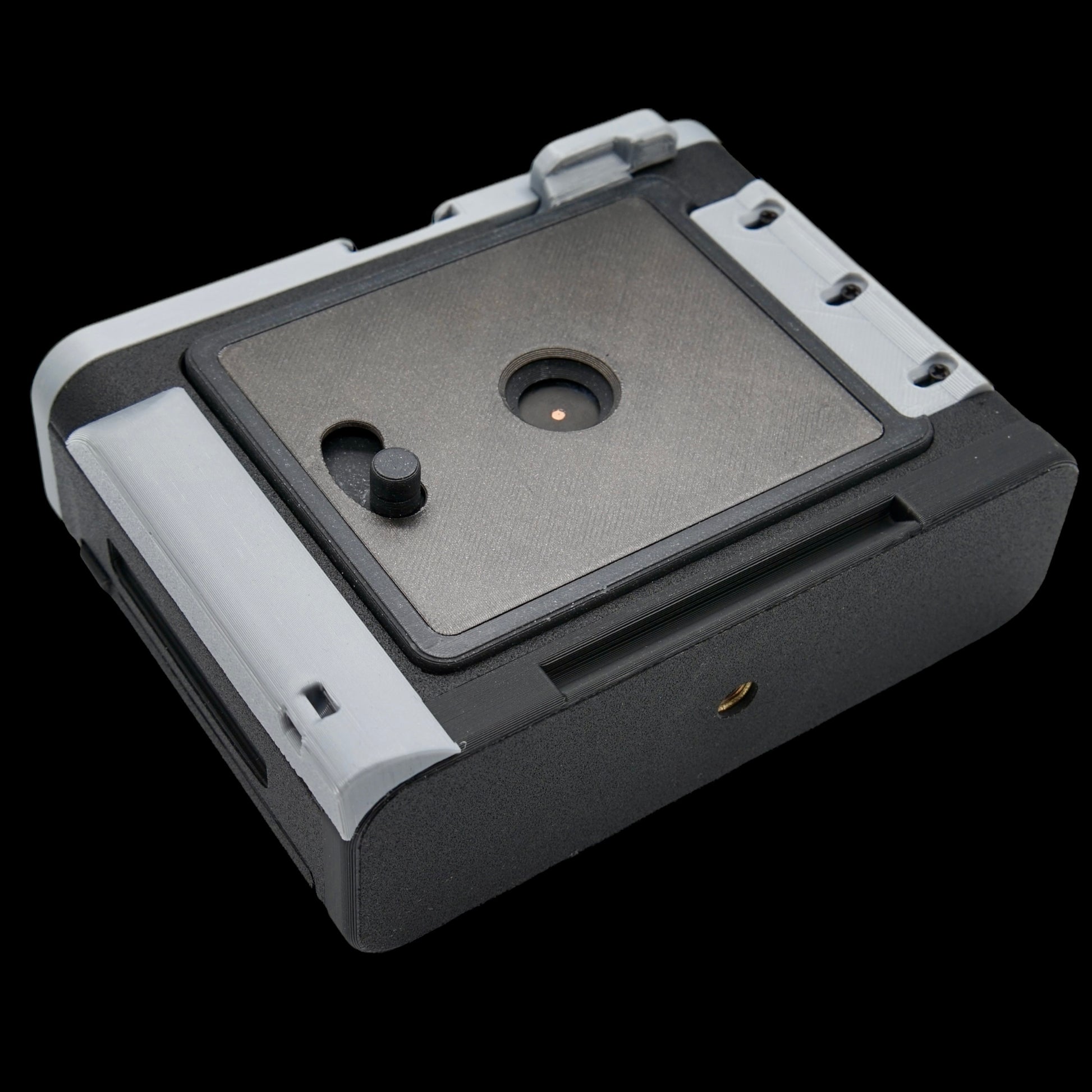

The rear of the film back has both a central red window (6x6 - 12 frames) and one in the lower right (645 - 16 frames), used to quickly and easily wind on to the next frame. The full manual winding means that double/multiple exposures are possible. The following frame numbers are used;

 6x6 - 1,2,3,4,5,6,7,8,9,10,11,12 (12 frames)

645 - 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 (16 frames)

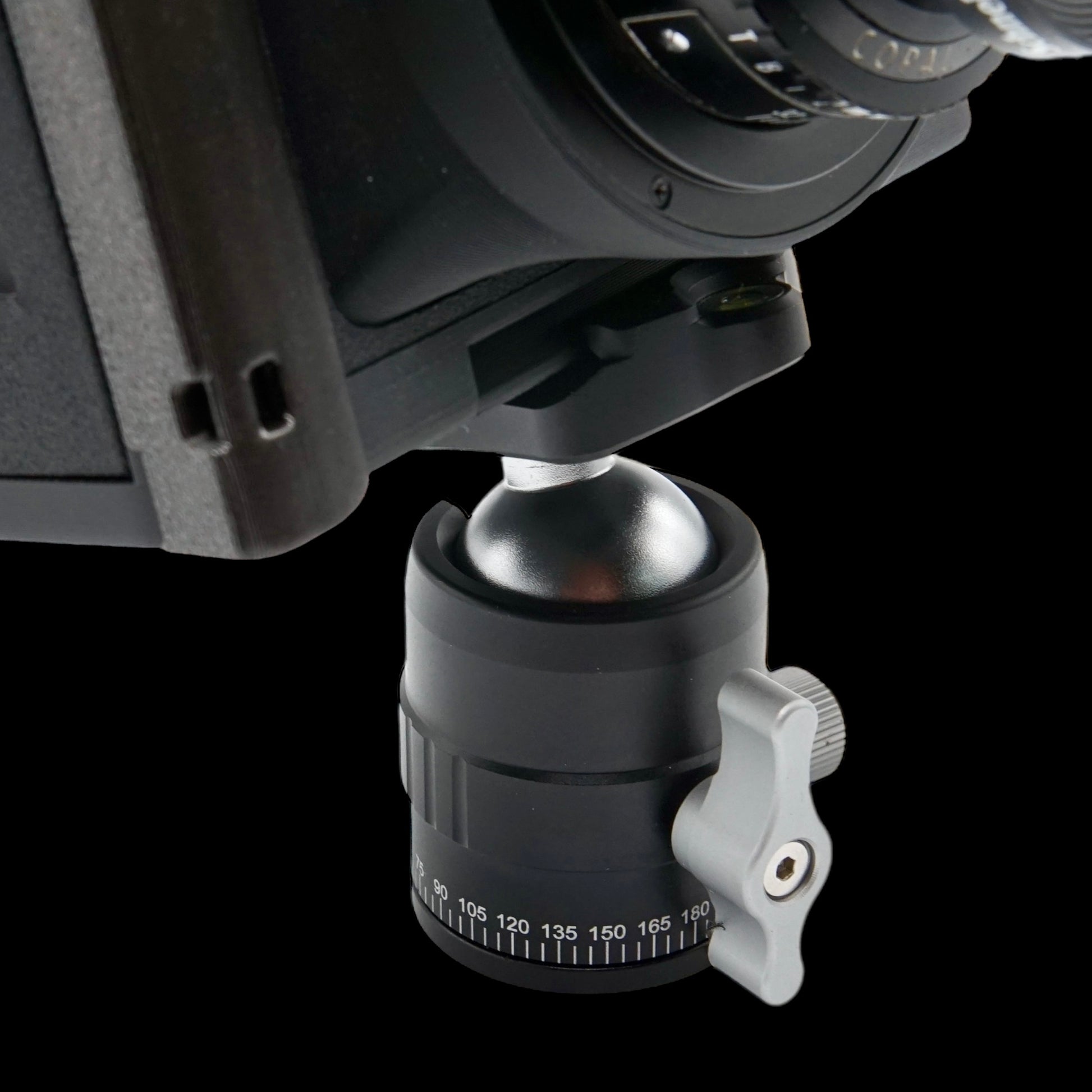

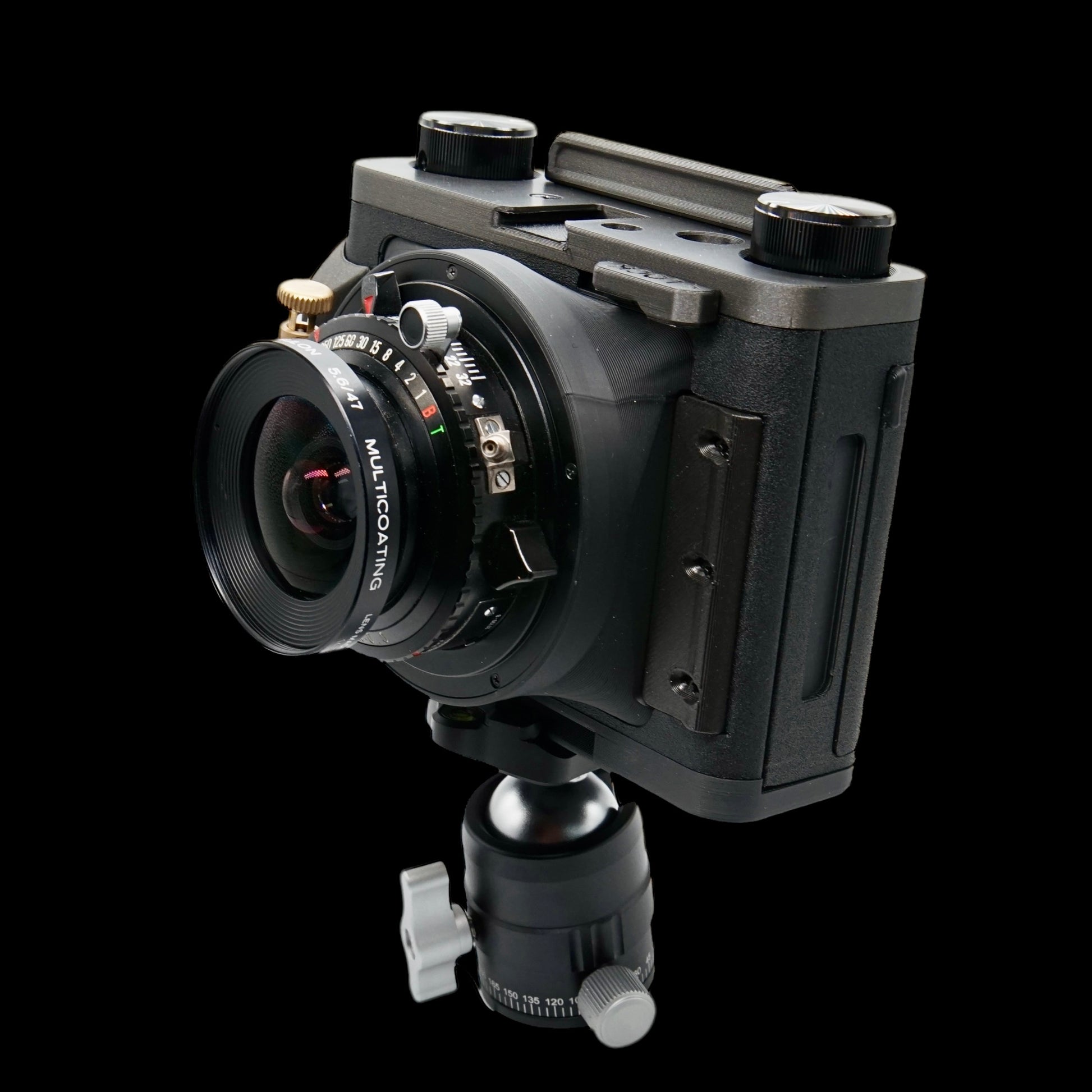

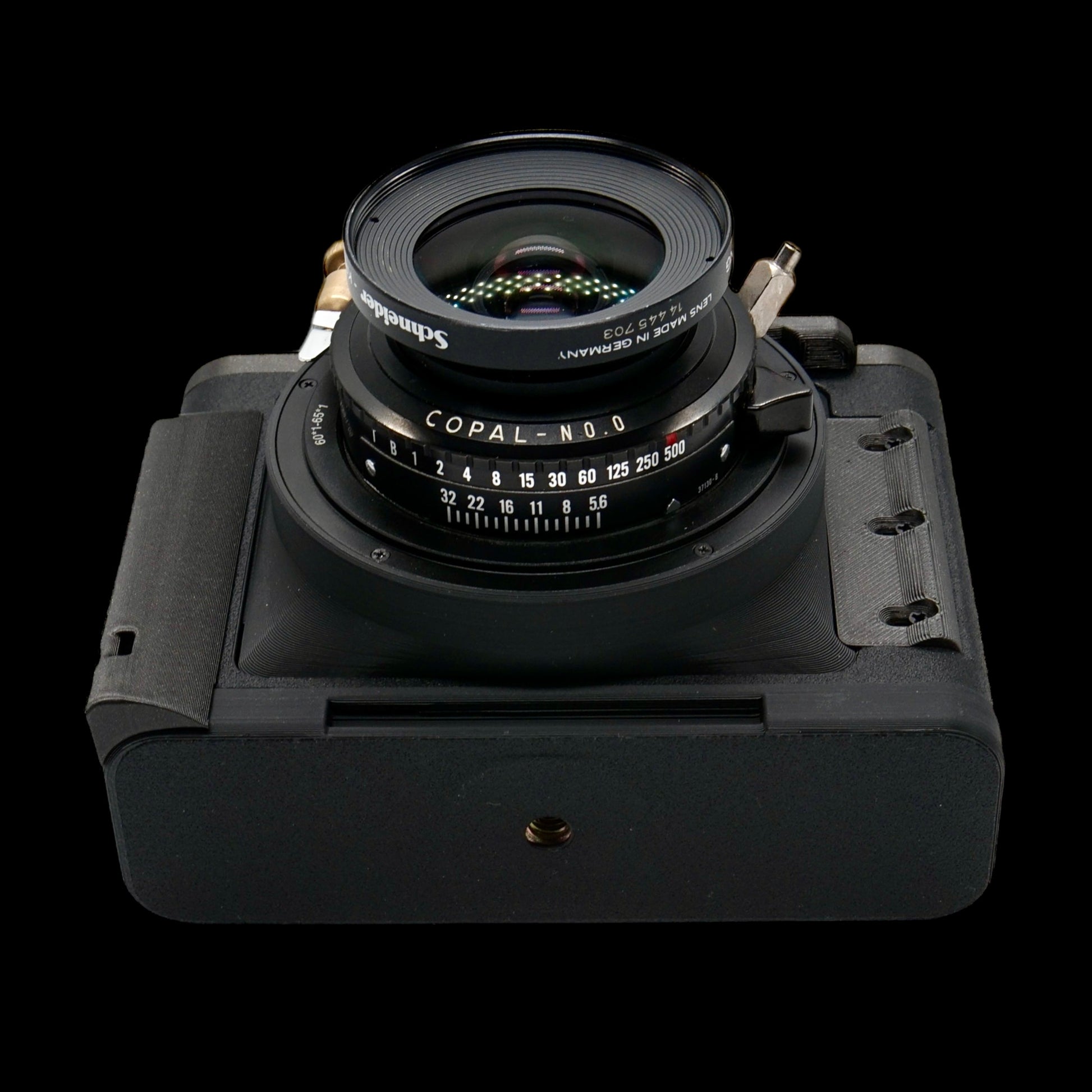

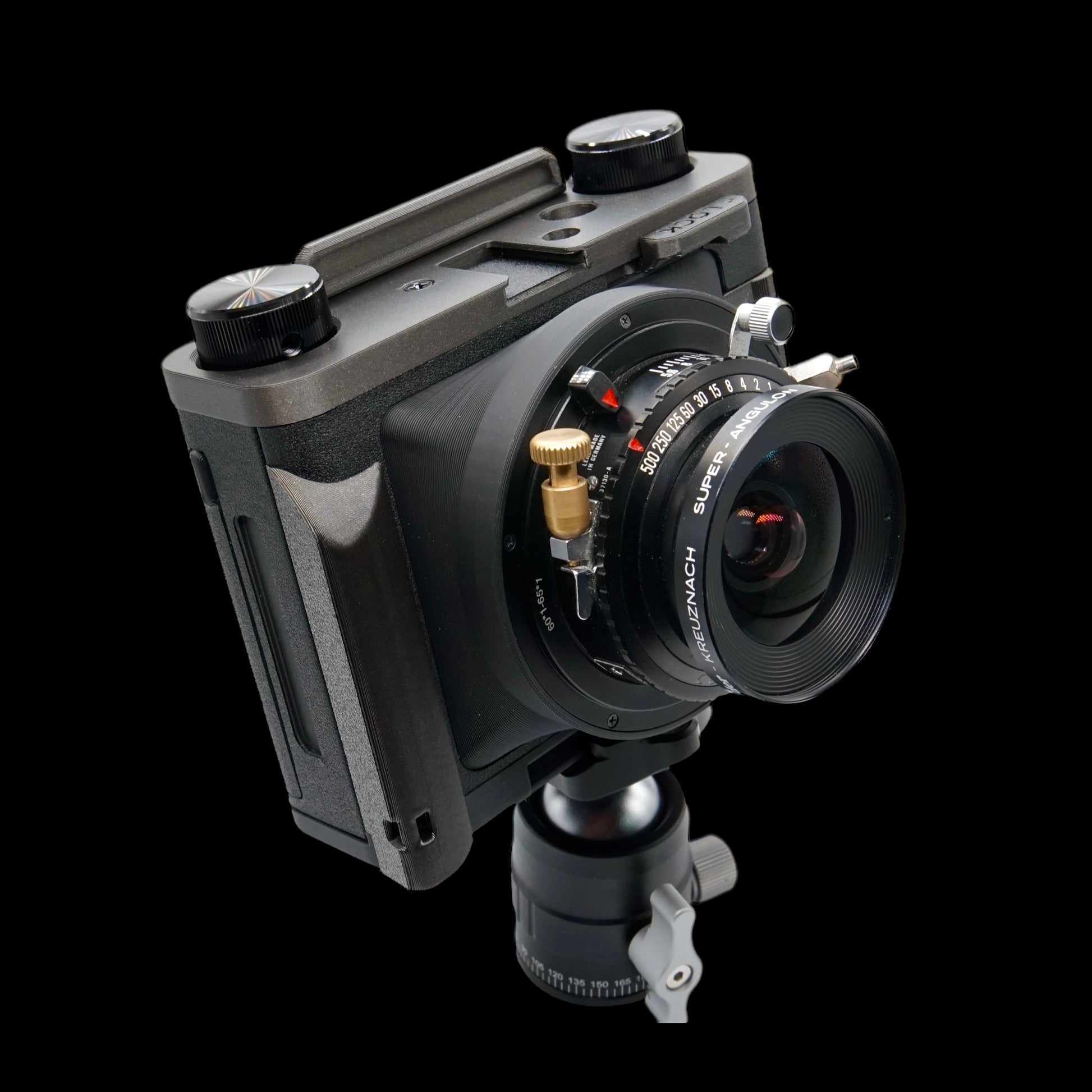

The Six:6 weighs only 279g, without lens/cone, making it a very compact system that you can comfortably carry in a bag, or attached via a camera strap. There is a standard ARCA dovetail integrated into the base of the main camera body. This can be used to mount the camera direct to a standard tripod head for lighter lenses (up to 150mm lens). As well as this, there is also a reinforced 1/4” tripod thread integrated into the base too.

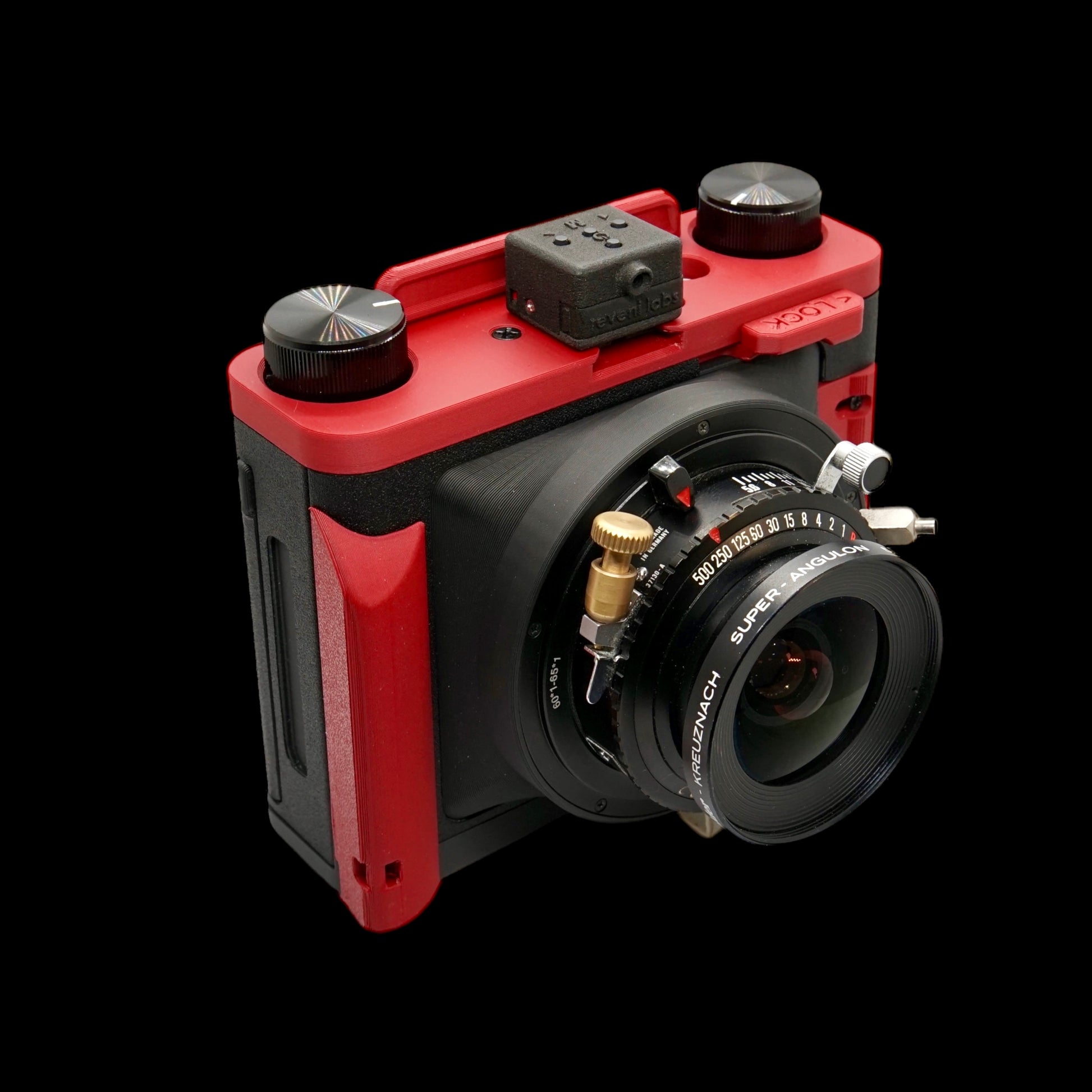

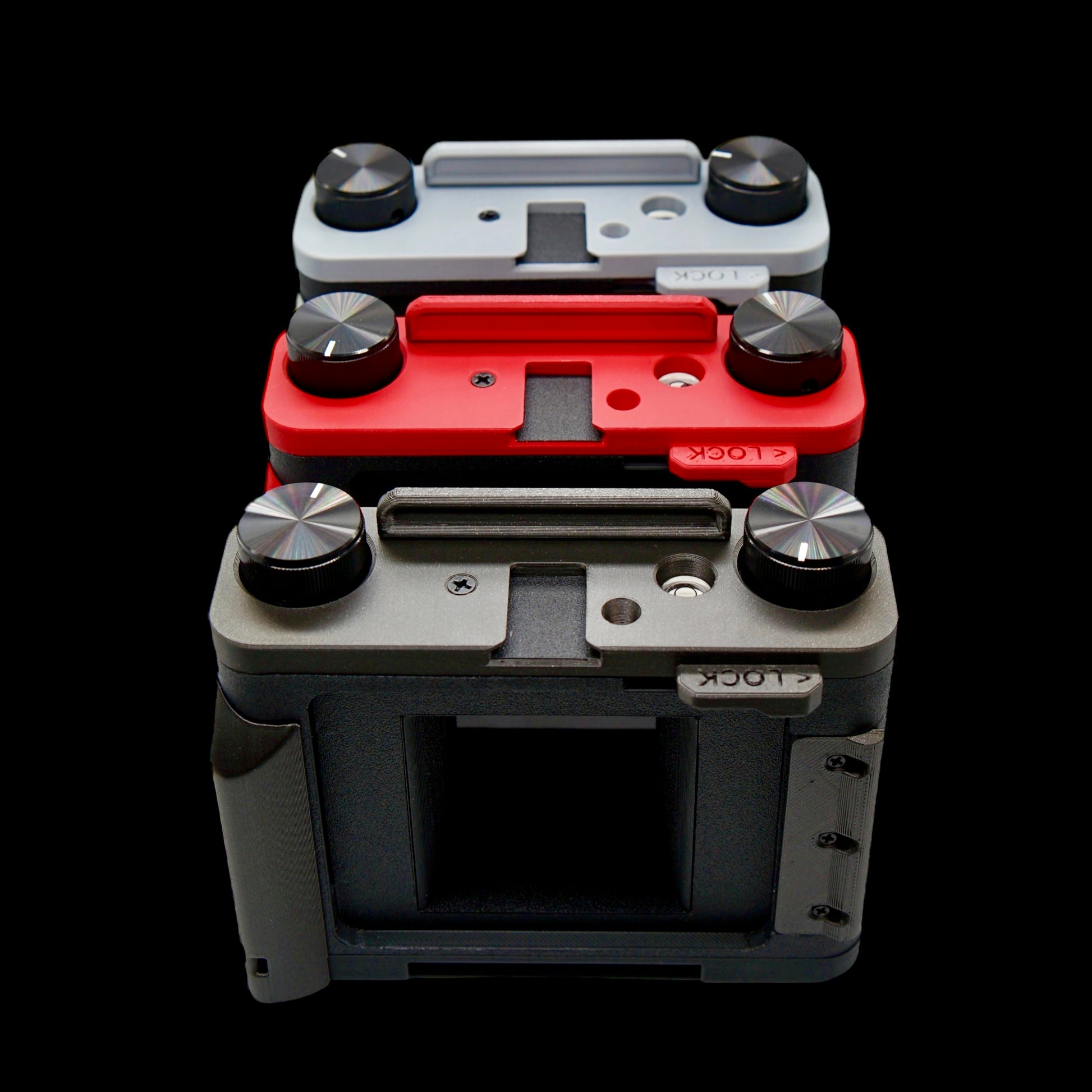

There is a central coldshoe on the top plate. Accessory viewfinders/rangefinders can be used in the coldshoe to help with framing/focus (not included).

Dimensions

126mm wide

38mm deep

103mm high, including the winding knobs.

 Weighs 279g without a lens

There is no lens included with the Six:6 - This will need to be supplied by the photographer.
